This machine has an independent power mechanism and electrical system and adopts button centralized control, which can realize adjustment (jog), manual, semi-automatic (work), and three operation modes. It can realize two pressing methods: constant pressure and fixed stroke.
This series of presses is mainly suitable for the hot forging process of metal materials.
The working pressure, pressing speed, and stroke of the machine can be adjusted within the specified parameters according to the process requirements.
This machine has an independent power mechanism and electrical system and adopts button centralized control, which can realize adjustment (jog), manual, semi-automatic (work), and three operation modes. It can realize two pressing methods: constant pressure and fixed stroke.

Product Features:

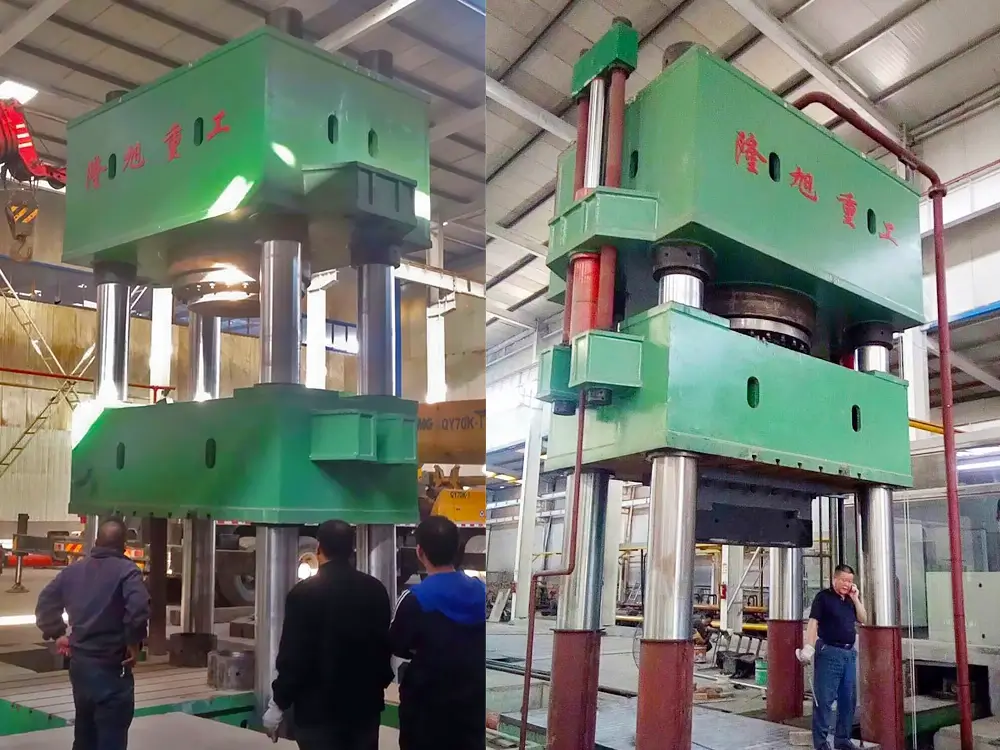

2500T four-column fast forging hydraulic press

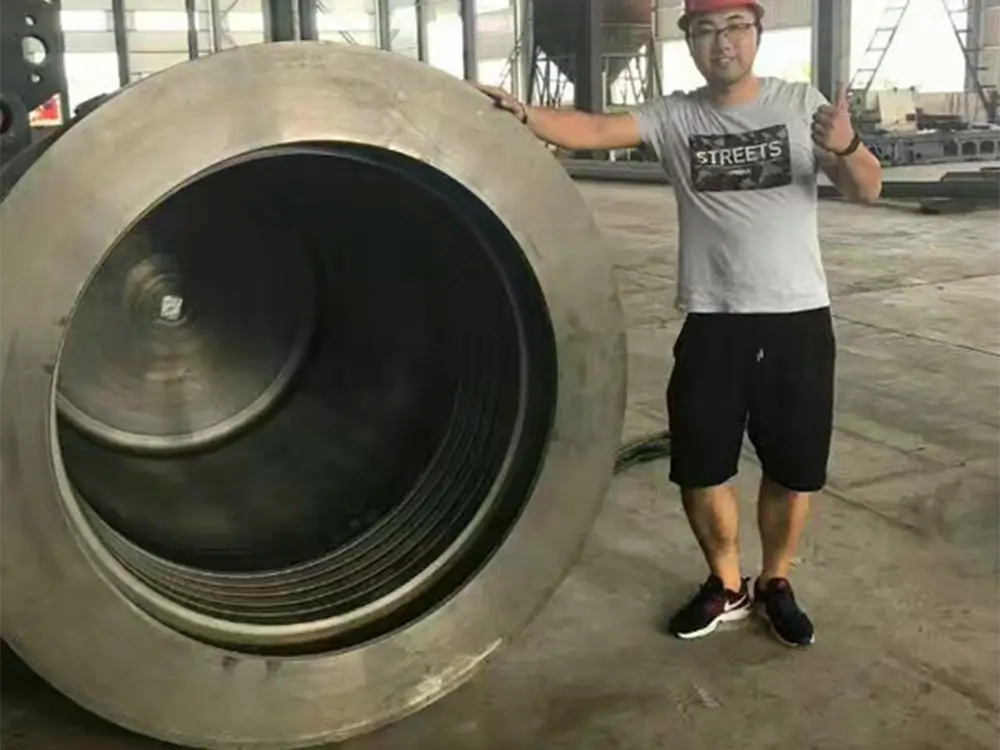

Hydraulic cylinder technology
(1)Bottom, steel cylinder, piston, piston rod overall forging, material: 45 # steel
(2)sets of piston guide, support guide ring inlaid Note phosphor bronze instead of the traditional nylon material, which greatly improves the stability and wears resistance oriented
(3)Rod from the nitriding, carburizing surface, depth: 0.03mm ~ 0.04mm, hard chrome plating, thickness 0.04mm ~ 0.05mm
(4)column with 45 # carbon steel, quenching and tempering treatment, surface hardening treatment, hard chrome plating thickness 0.04mm ~ 0.05mm
Machine structure
The body of the beam, moving beam, and lower beam, consist of six columns. De-stress treatment, block 45 # forgings. 50 # forged steel rod ion nitriding. Hardness HRC45-50

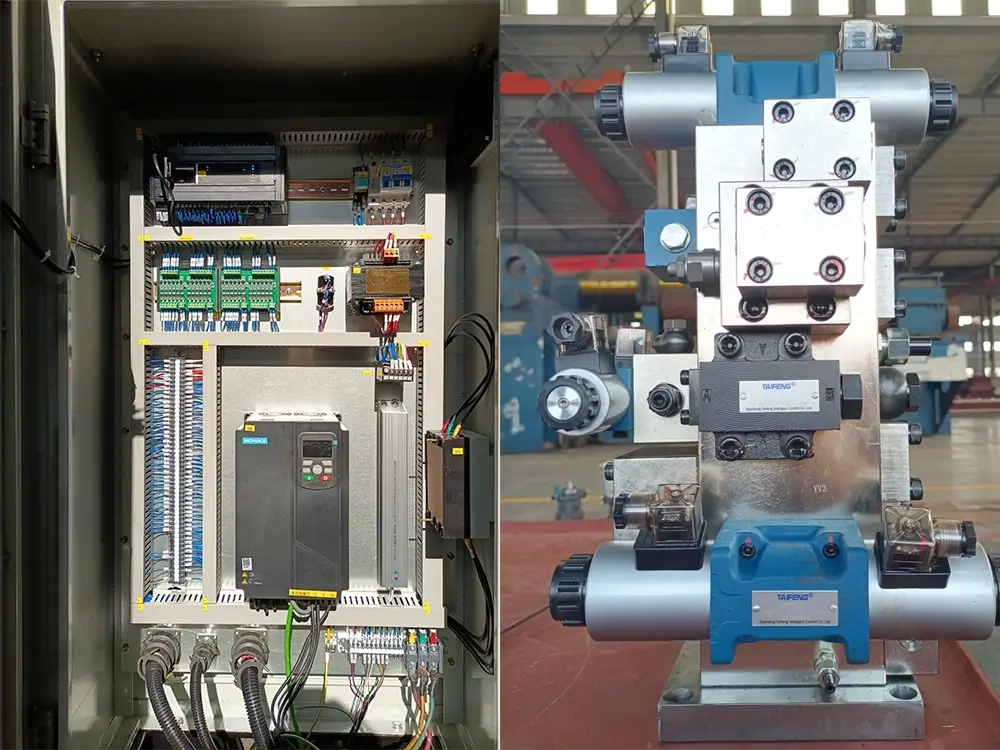

operation interface
PLC smart computer can compile more than 100 templates
Chinese and English logo button operation at a glance
2500T four column fast forging hydraulic press | |||
Parameter | Unit | Y32-2500T | |
Rated force | KN | 25000 | |
Max. Hydraulic Pressure | Mpa | 25 | |
Ram stroke | mm | 1500 | |
Max. Daylight | mm | 2000 | |
Approaching | mm/s | 80 | |
Ram speed | Pressing | mm/s | 6-10 |
Returning | mm/s | 60-80 | |
Table size | L-R | mm | 2000 |
F-B | mm | 1600 | |
Motor power | Kw | 45*4 | |
2500T four-column fast forging hydraulic press is widely used in the fast forging industry, metal structure, and machinery manufacturing industry.
One year for the whole machine, any parts except consumables broken regarding machine quality within one year, We will send you the parts for free.
We will supply all the control systems and software operation manual, so you can operate the machine easily refer to it.
For machine problems, you can ask us any time, we will help you solve by the online way , or tel, email, or remote video the first time.
Welcome to our factory for learning how to operate the machine, one professional engineer will together with you, this service for free.
