3m large upper roll universal plate rolling machine has an excellent and
accurate system, unique curving process, and end-curving with high
precision, there seems to be no fissure after continuous curving, and
the whole process is digitally controlled.
Human-computer
dialogue screen, and highly artificial, bending process software
physically and the bending can be remedied automatically. It can be
operated by one person, so very high-professional, in rolling O-shape,
U-shape, and multiple-cutting R shapes.
3m large upper roll universal plate rolling machine has an excellent and accurate system, unique curving process, and end-curving with high precision, there seems to be no fissure after continuous curving, and the whole process is digitally controlled.
Human-computer dialogue screen, and highly artificial, bending process software physically and the bending can be remedied automatically. It can be operated by one person, so very high-professional, in rolling O-shape, U-shape, and multiple-cutting R shapes.
This machine takes a drum style on the upper roller and there is adjustable operation, it is applicable to straight-line products from thin plates to thick ones. The unique back-desk rolling process, continuous curving to avoid dead bending, and pointed peach.
The top of the plate can be pressured somehow. It can control the length and shape of the remaining straight line. Now we can use the whole-style assembly because it is convenient and simple and movable.

Product Features:

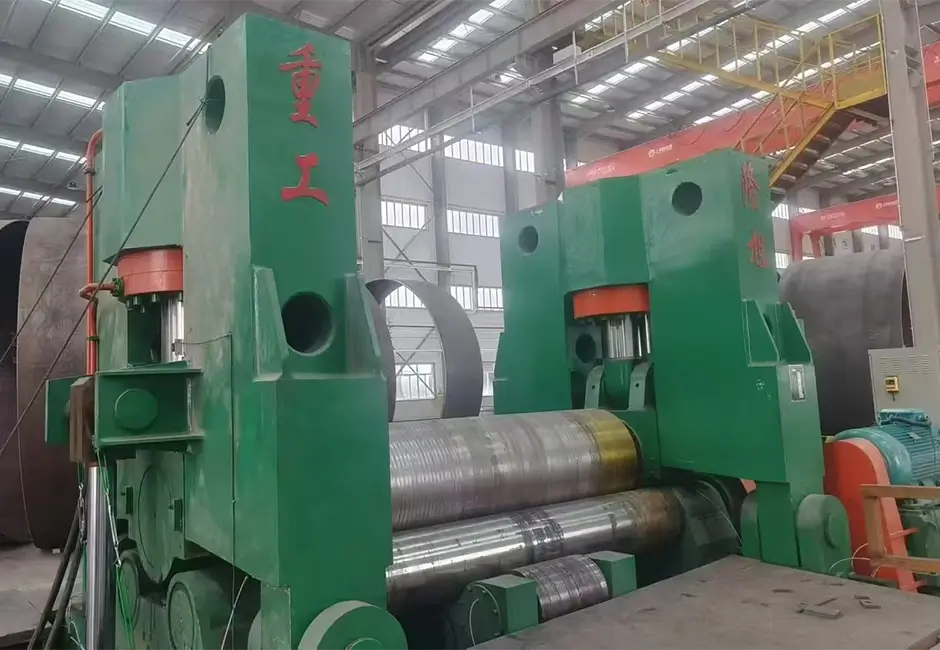

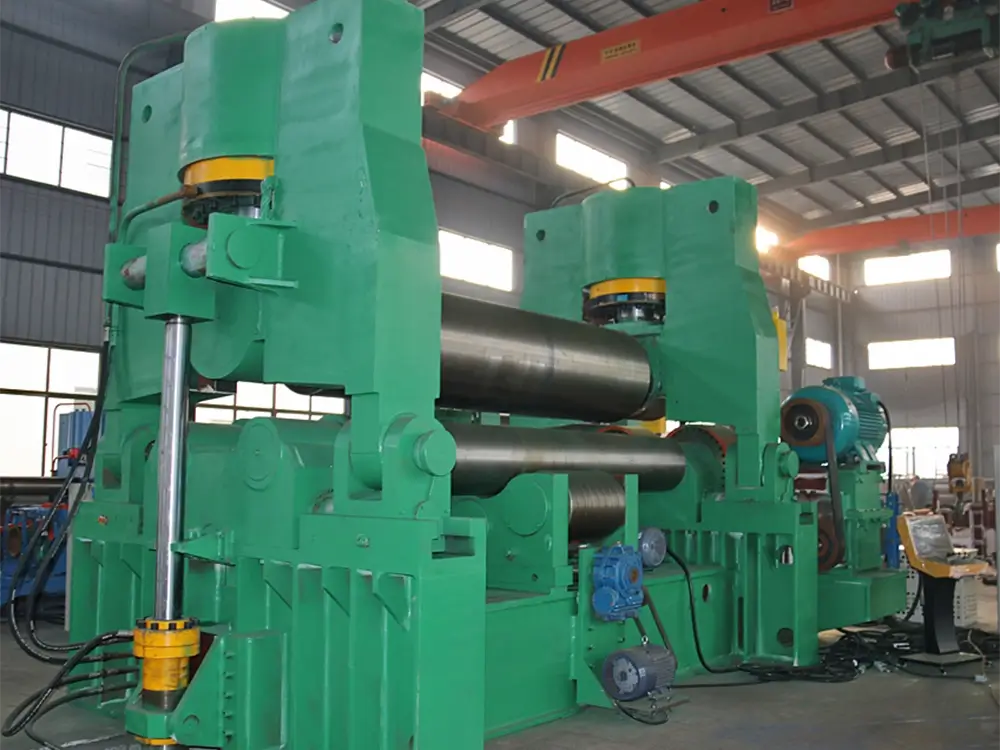

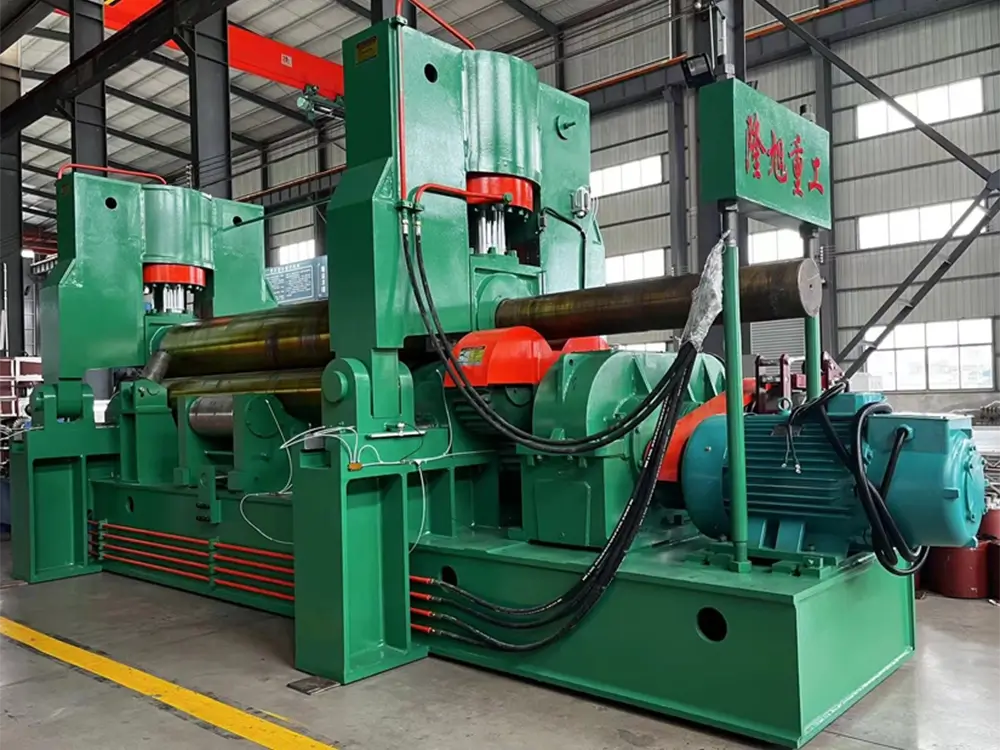

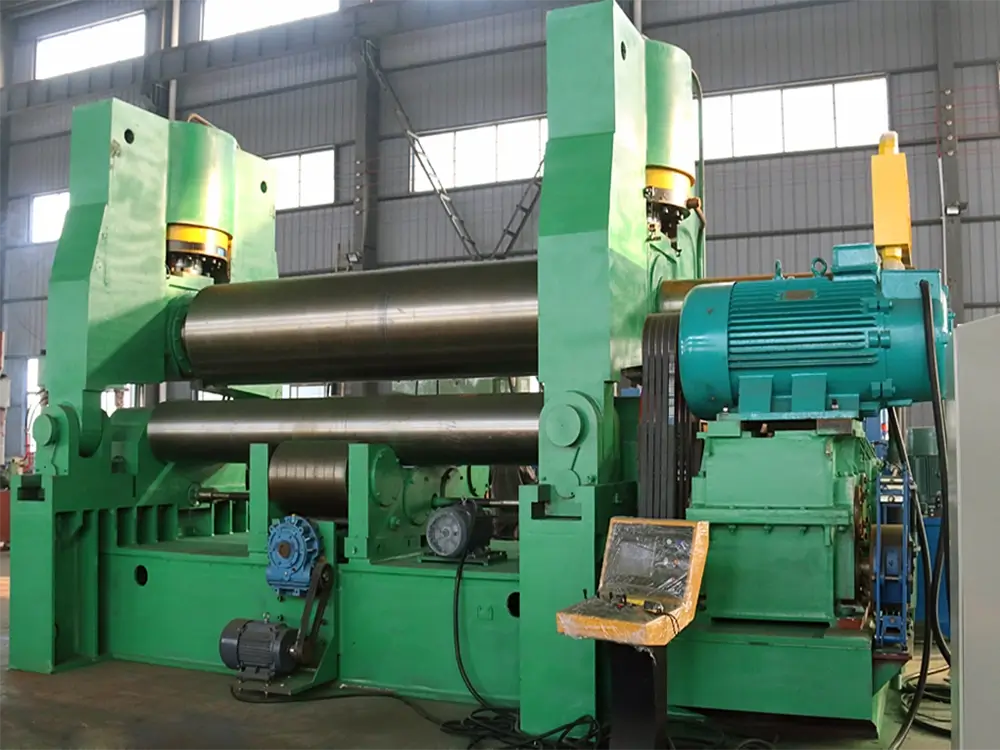

3m large upper roll universal plate rolling machine for wind power generation belongs to the hydraulic three-roll coiling machine. It is used for coiling low-carbon steel and low-alloy steel into cylindrical shapes at room temperature.
The upper roller can move horizontally and move up and down.
Pre-bending is realized by adjusting the upper roll to make the upper roll asymmetrical relative to the lower roll.
Two lower rollers are driven by the main motor and reducer.
Because the lower roller elevation remains unchanged, it is convenient for feeding and operation.
It’s adopted PLC programmable display control.



large upper roll universal plate rolling machine | ||||||
Model | Max rolling thickness(mm) | Max pre-rolling thickness(mm) | Max rolling width(mm) | Yielding Limit of plate(Mpa) | Diameter of top roller(mm) | Main motor power |
W11S-50×3500 | 50 | 40 | 3500 | 245 | 620 | 63 |
W11S-60×2500 | 60 | 50 | 2500 | 245 | 610 | 63 |
W11S-70×3500 | 60 | 50 | 3500 | 245 | 720 | 75 |
W11S-80×2500 | 80 | 70 | 2500 | 245 | 720 | 75 |
W11S-80×3200 | 80 | 70 | 3200 | 245 | 770 | 90 |
W11S-100×3200 | 100 | 80 | 3200 | 245 | 860 | 110 |
W11S-120×3500 | 120 | 100 | 3500 | 245 | 940 | 63*2 |
W11S-150×3000 | 150 | 120 | 3000 | 245 | 1050 | 75*2 |
More models can be customized | ||||||
large upper roll universal plate rolling machine widely used in petroleum, chemical industry, boiler, shipbuilding, hydropower, metal structure, and machinery manufacturing industry.
One year for the whole machine, any parts except consumables broken regarding machine quality within one year, We will send you the parts for free.
We will supply all the control systems and software operation manual, so you can operate the machine easily refer to it.
For Machine problems, you can ask us any time, we will help you solve them by online way, or tel, email, or remote video the first time.
Welcome to our factory for learning how to operate the machine, one professional engineer will together with you, this service for free.
