SMC-composite-material-special-hydraulic-press, applied to electronic and electrical, automotive parts, sanitary ware, military industry, aviation, high-speed rail, electric vehicles, bathroom, automotive, motorcycle accessories.
(Fuses, low-voltage switches, meter boxes, lamp housings, insulation components, electrical components, pump components, air switches, floor mats, household appliance parts, etc.)
By adopting full CNC servo control, the molding machine in BMCSMC products can freely set pressure values, speed, position, holding time, mold opening speed, etc.
SMC-composite-material-special-hydraulic-press, applied to electronic and electrical, automotive parts, sanitary ware, military industry, aviation, high-speed rail, electric vehicles, bathroom, automotive, motorcycle accessories.
(Fuses, low-voltage switches, meter boxes, lamp housings, insulation components, electrical components, pump components, air switches, floor mats, household appliance parts, etc.)
By adopting full CNC servo control, the molding machine in BMCSMC products can freely set pressure values, speed, position, holding time, mold opening speed, etc. Lay the SMC and BMC bulk materials flat on the lower mold, seal the upper and lower molds tightly, and then heat the delayed pressure holding mold. The temperature can be controlled correctly using a heating tube or a mold temperature machine. The pre impregnated material is cured by high temperature and high pressure over time on a dedicated SMC BMC molding hydraulic press. The finished product is taken from the mold and trimmed with burrs to complete the product.

Product Features:
1. Working surrounding
Power-supply fluctuation:380 V (±15%), 50Hz, 3P or customized
Working temperature:0℃-40℃
Working humidity:55%-85%, without dew
Altitude:<1000 meters
Working Surrounding: Without harmful gas, metal fragments, without metal dust, without strong electromagnetic interference

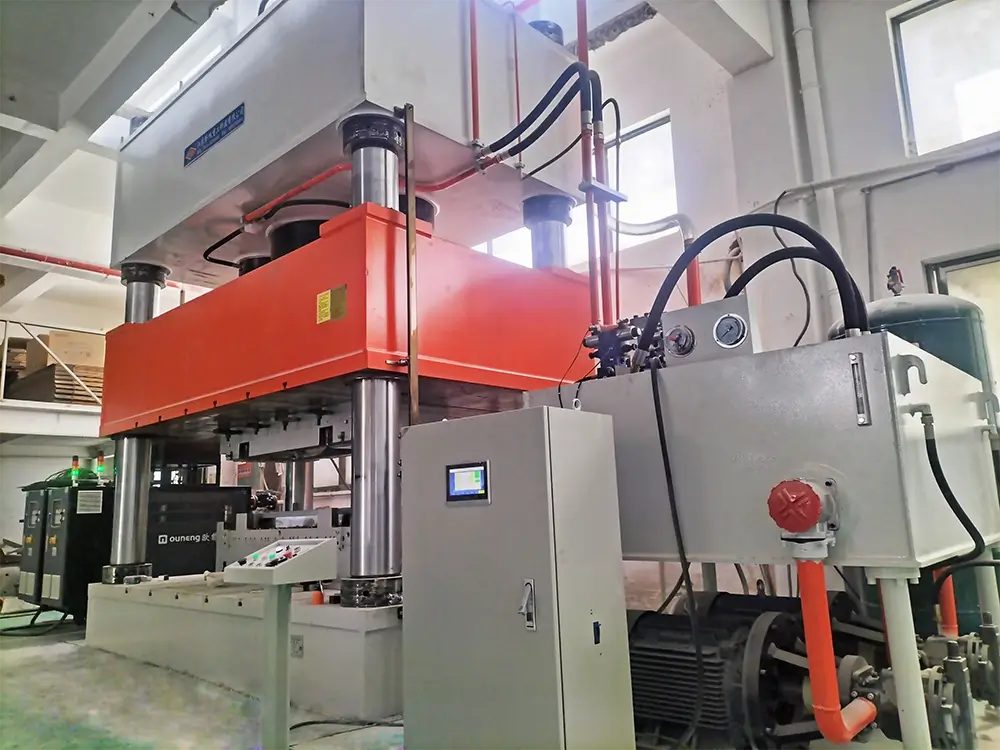

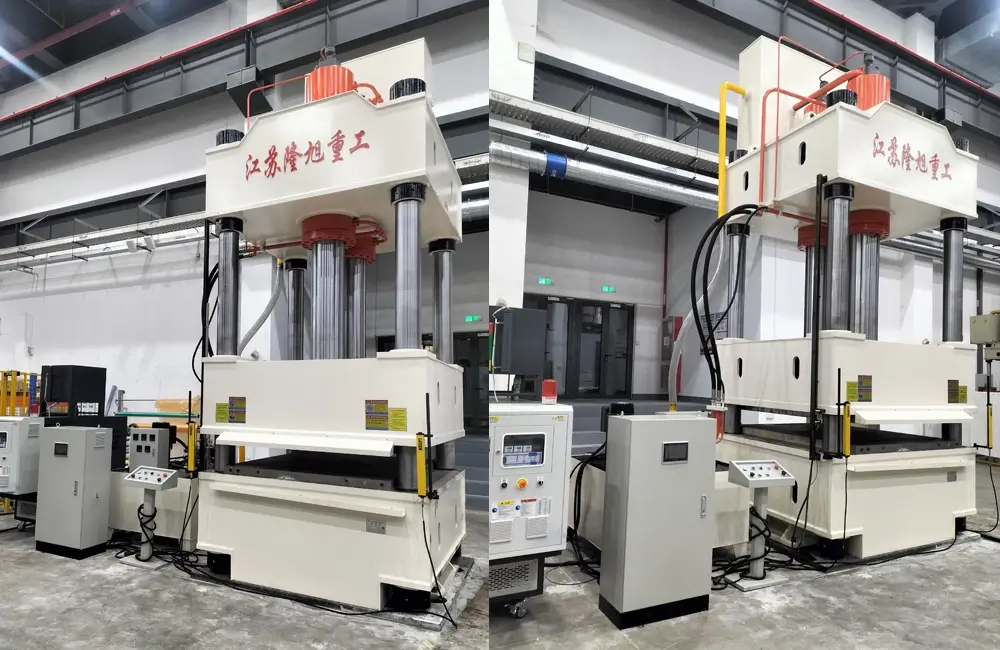

2. Basic structure
The press can be divided into three main components:
the control/operating panel
the press
the hydraulic unit

The control panel
The control panel is separated from the main structure for the convenience of operation. The panel consists of a number of push buttons. The main operation pressing is controlled by two press buttons, providing a bi-manual operation to safeguard the operator from potential harm. The working pressure and stroke range of the slider can be adjusted according to the process requirements

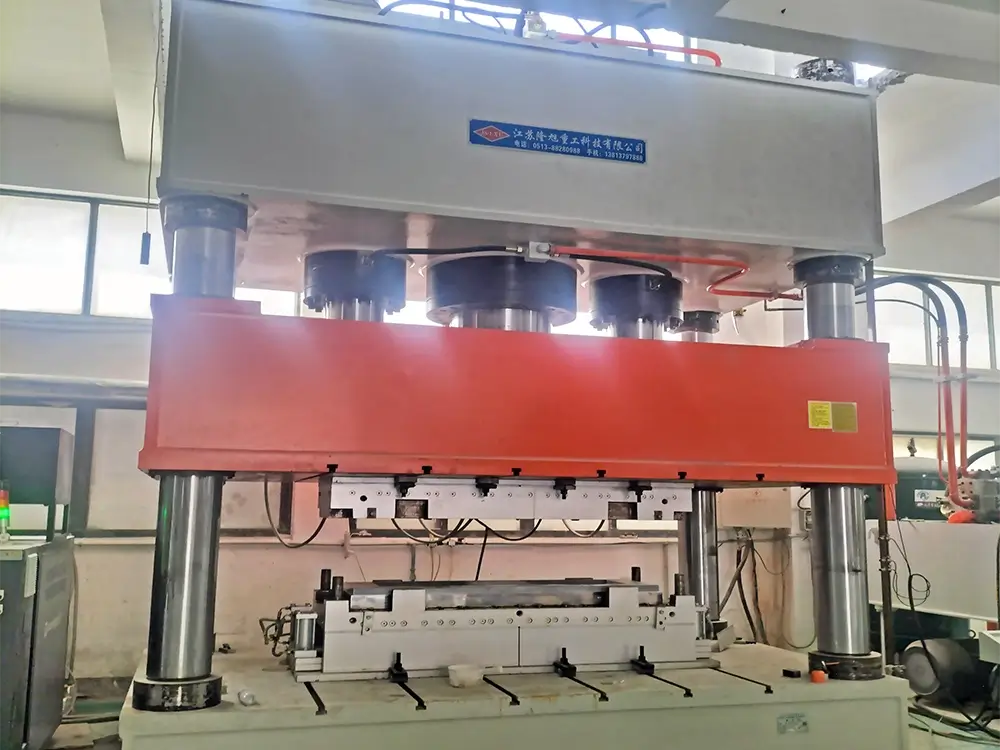

The press

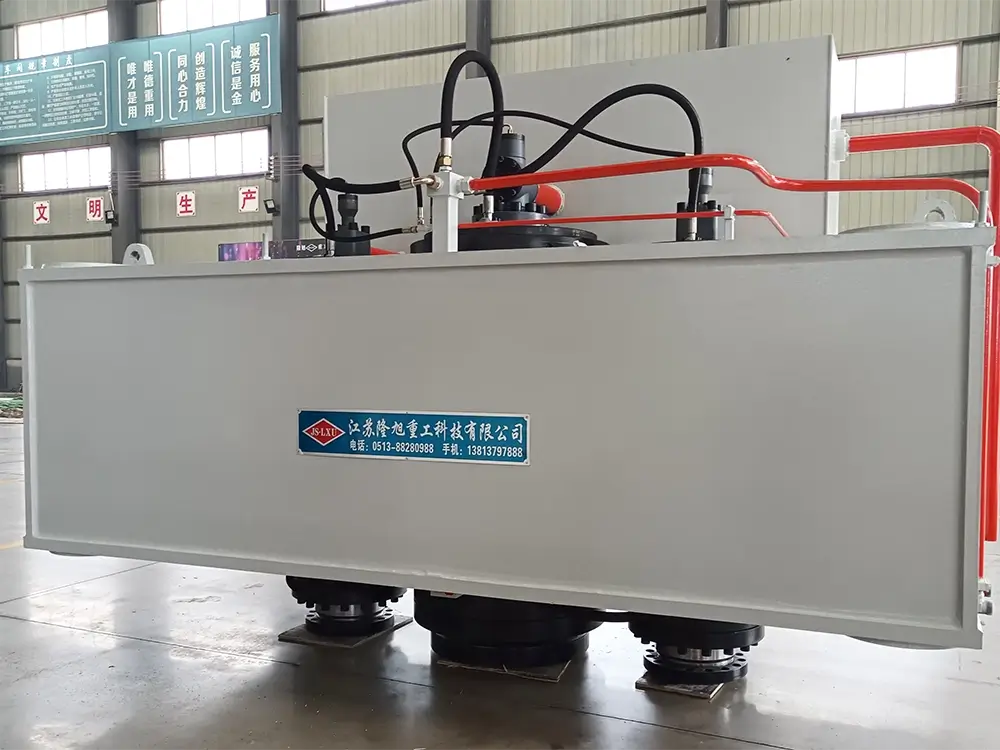

The main structure is steel welded, with heat treatment to remove the inner stress, with high rigidity and stability. The cylinder, piston, and column are made of #45 forging steel, quenching, and plating hard chrome to increase hardness.
The hydraulic unit
The hydraulic unit is the power of the machine, it’s placed on the right side of the press and connected to it by flexible high-pressure hoses and a multi-signal electrical connection.

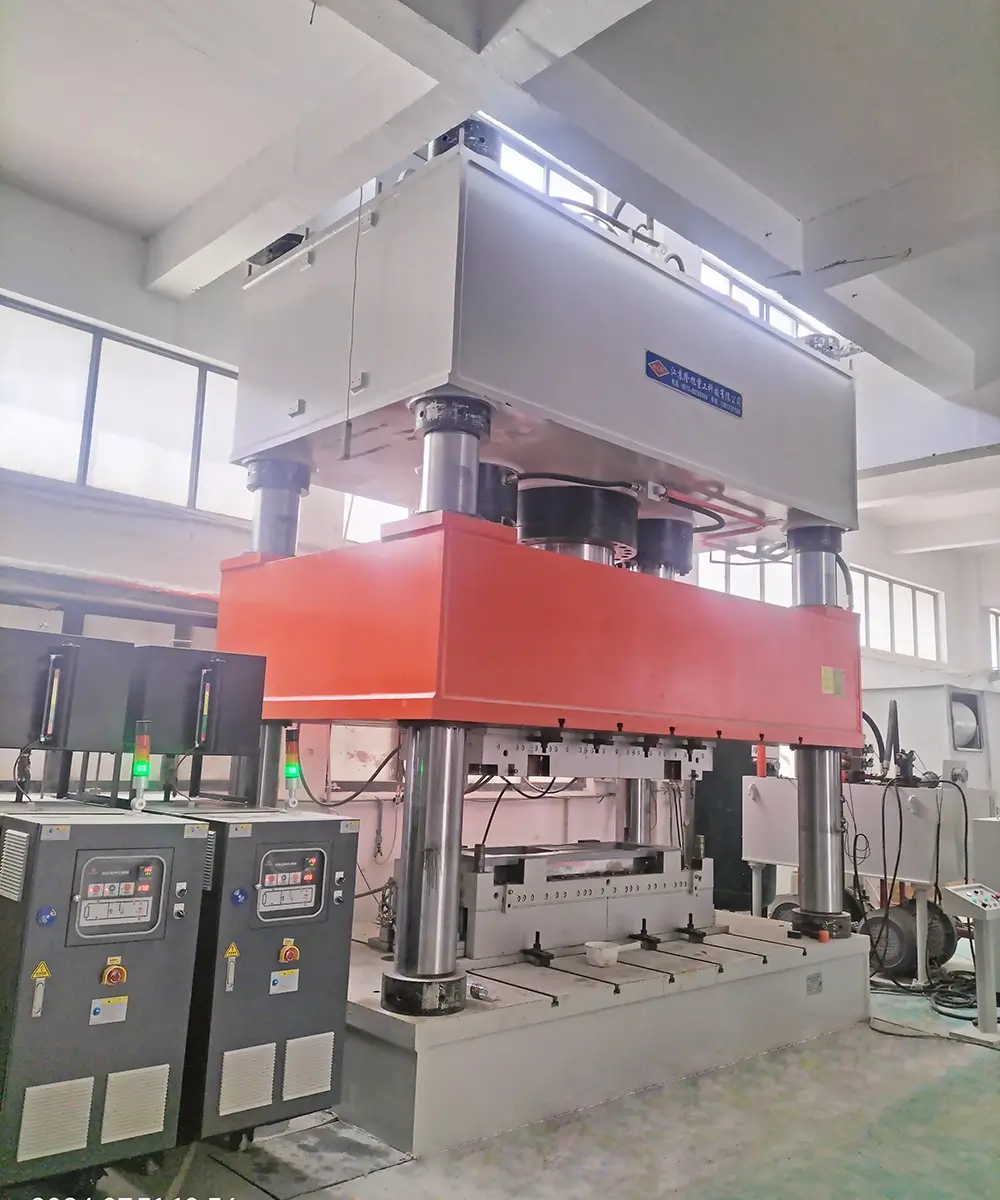

Mold temperature control machine
Mold temperature control machines are used to control the temperature of molds, usually including oil circulation mold temperature control machines and water circulation mold temperature control machines. They heat oil or water to the required temperature of the mold and circulate it inside the mold to control the temperature, maintaining a stable temperature to improve product quality and production efficiency.

One year for the whole machine, any parts except consumables broken regarding machine quality within one year, We will send you the parts for free.
We will supply all the control systems and software operation manual, so you can operate the machine easily refer to it.
For machine problems, you can ask us any time, we will help you solve them online way , or tel, email, or remote video for the first time.
Welcome to our factory for learning how to operate the machine, one professional engineer will together with you, this service for free.
