Four Roller Plate Rolling Machine
Fully Automatic CNC Hydraulic Four Roll Plate Bending Machine
Precision Bending for Heavy-Duty Industrial Applications

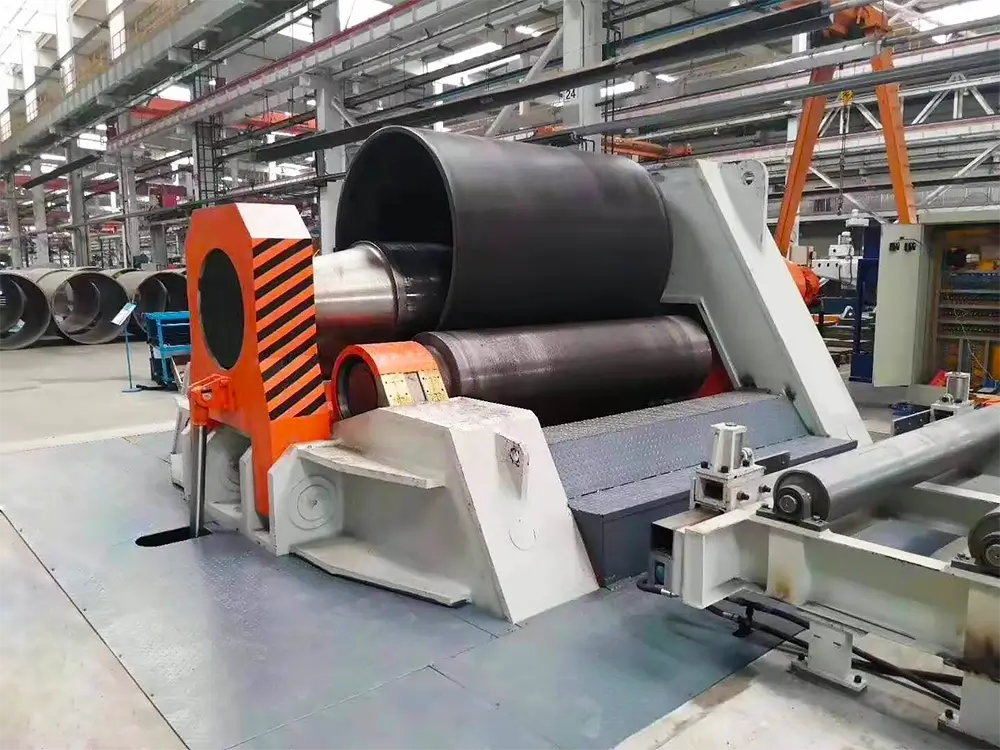

Large double-drive hydraulic four roll plate rolling machine for thick plate rolling of pressure vessels is widely used in shipbuilding, boiler, aviation, bridge, hydropower, chemical industry, metal structure, and machinery manufacturing industries.
One year for the whole machine, any parts except consumables broken regarding machine quality within one year, We will send you the parts for free.

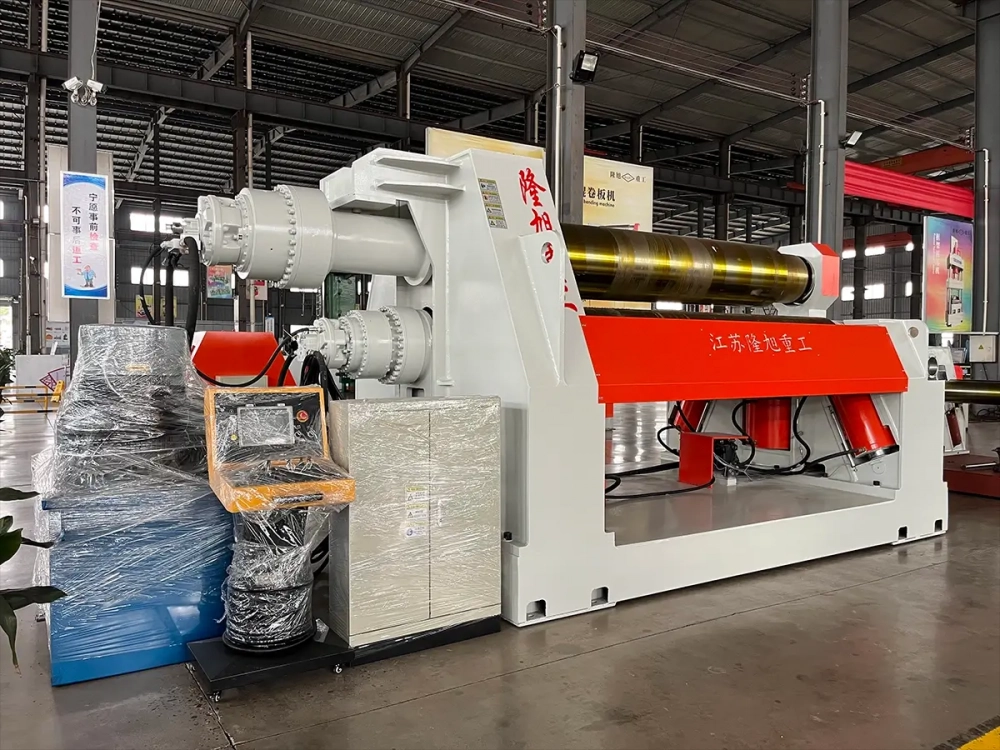

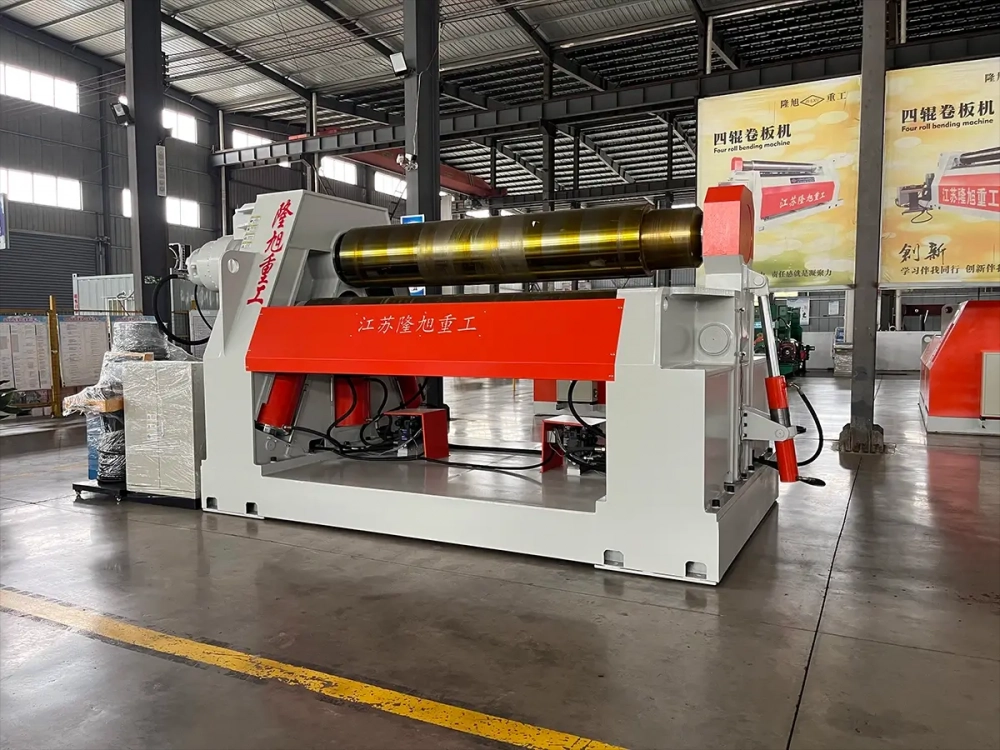

The machine is a Large hydraulic double drive four roll plate rolling machine, upper roller and lower roller are both initiative rollers, the upper roller is fixed, and the lower roller does up and down movement; upper roller and lower roller are hydraulic initiatives, while the side rollers are driven by friction from plate and rollers.
Lower roller and side rollers are driven by a hydraulic oil tank to do lifting movement. The upper roller’s center-bearing overturn and reset are also caused by a hydraulic oil tank. Rollers’ bearing and oil tank are installed on the left and right sides of the machine frame.
The Left and right machine frameworks are the main parts of the whole machine, which are totally steel welded, installed on the welded base, and all operations are finished on the console.
Product Features:
The Large hydraulic double drive four roll plate rolling machine is very suitable for thickness plate rolling and variable radius workpiece;
Rolling the whole cylinder or part of the cylinder with different radii can be easily realized;
lower roller and side roller are pushed by hydraulic pistons for diagonal movement;
Welding the frame and eliminating the stress as a whole;
Quality certification of high strength induction hardening forging steel working roller;
overload protection;
centralized lubricating system;
Electronic balancing system;
The hydraulic motor and planetary reducer drive the working roller
Electrical power: Siemens or Schneider;
Easy to operate the movable operation table, with manual, semi-automatic, and automatic variety of options;
CNC automatic control ;
With ISO9000 certification.

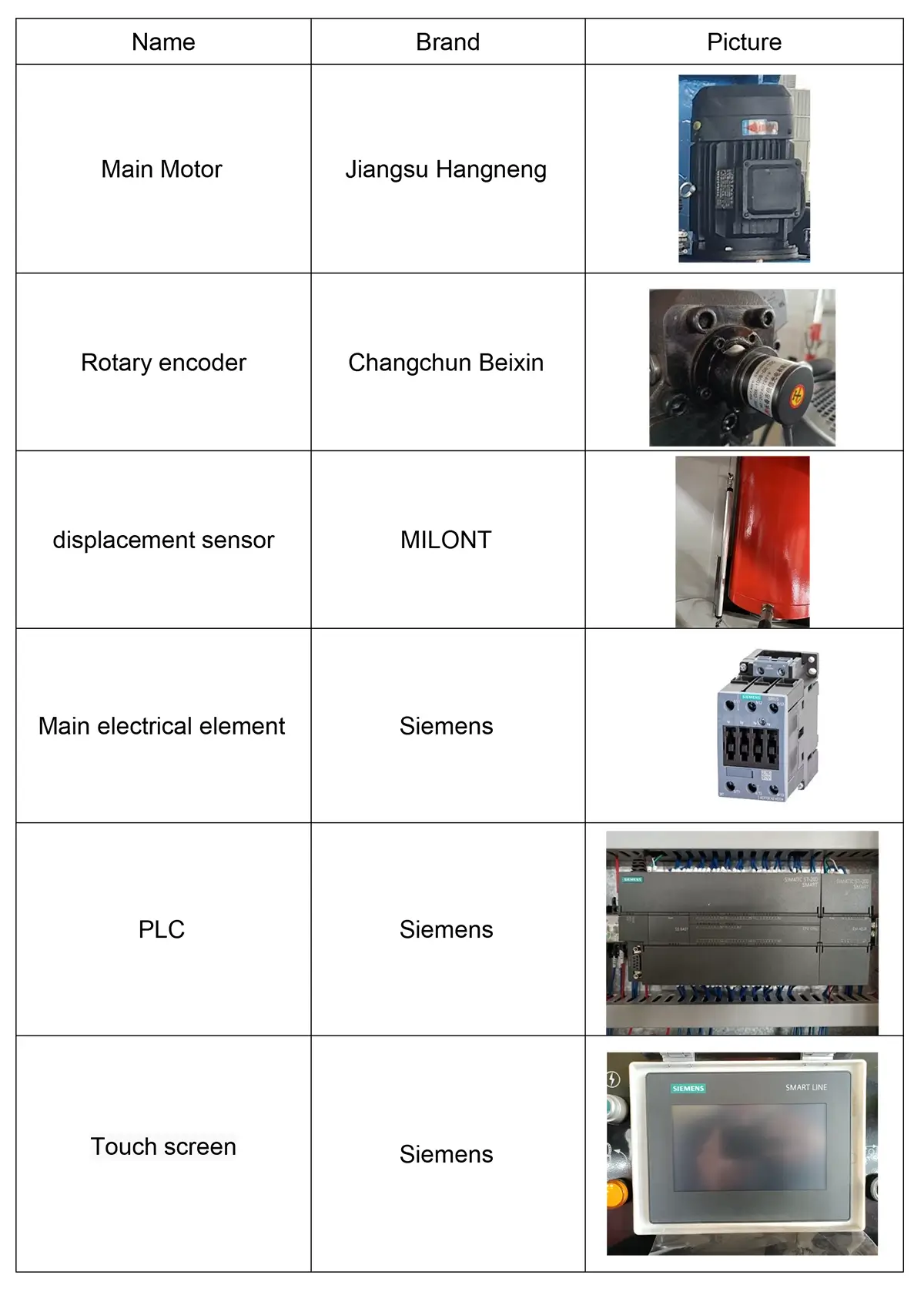

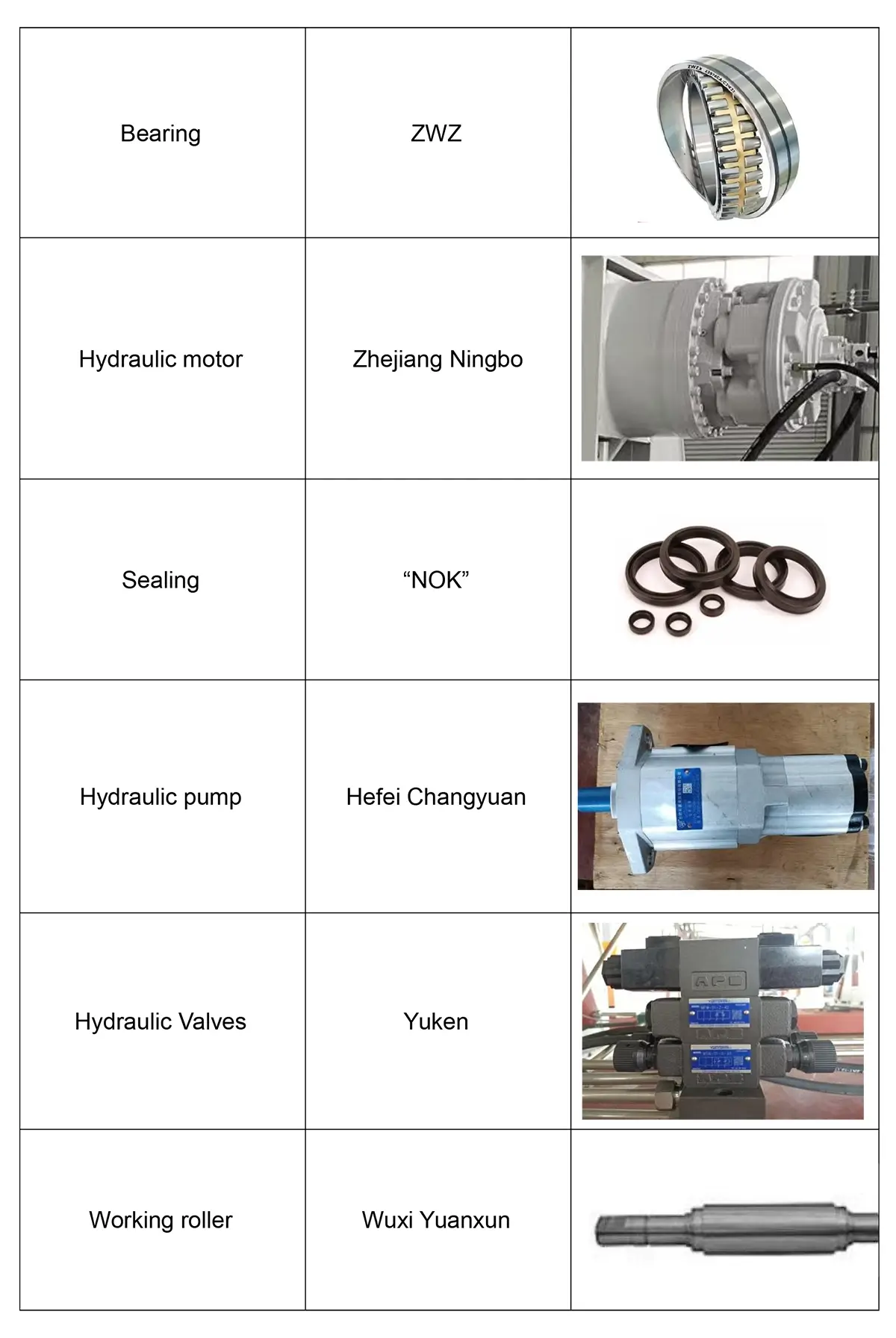

Main configuration:


Large hydraulic double drive four roll plate rolling machine | |||||||
Model | Max.rolling thickness | Max.pre-bending thickness | Max.rolling width | Upper roller Diameter | Lower roller Diameter | Side roller Diameter | Hydraulic motor power |
W12-40x2500 | 40 | 35 | 2500 | 520 | 500 | 400 | 45 |
W12-40×3000 | 40 | 35 | 3000 | 560 | 520 | 420 | 45 |
W12-50x2500 | 50 | 40 | 2500 | 560 | 540 | 460 | 45 |
W12-60x2500 | 60 | 50 | 2500 | 620 | 600 | 500 | 55 |
W12-60x3000 | 60 | 50 | 3000 | 680 | 660 | 560 | 75 |
W12-80x2500 | 80 | 65 | 2500 | 720 | 700 | 600 | 75 |
W12-80x3000 | 80 | 65 | 3000 | 800 | 760 | 660 | 75 |
W12-100x3000 | 100 | 80 | 3000 | 860 | 840 | 740 | 120 |
W12-120x3000 | 120 | 100 | 3000 | 920 | 900 | 780 | 150 |
Large double-drive hydraulic four roll plate rolling machine for thick plate rolling of pressure vessels is widely used in shipbuilding, boiler, aviation, bridge, hydropower, chemical industry, metal structure, and machinery manufacturing industries.
One year for the whole machine, any parts except consumables broken regarding machine quality within one year, We will send you the parts for free.
We will supply all the control systems and software operation manual, so you can operate the machine easily refer to it.
For machine problems, you can ask us any time, and we will help you solve them online way, tel, email, or remote video for the first time.
Welcome to our factory for learning how to operate the machine, one professional engineer will together with you, this service for free.
