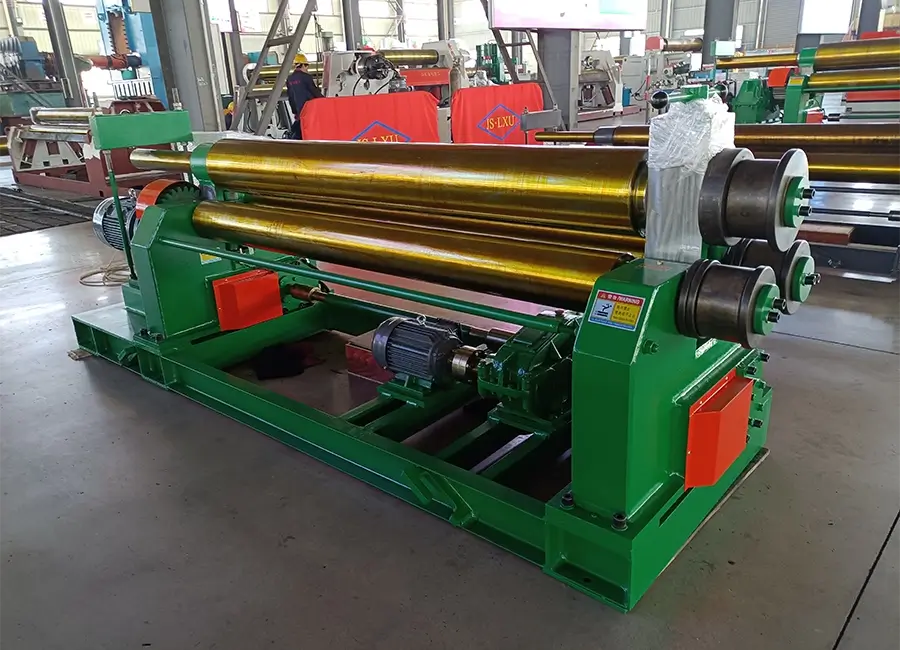

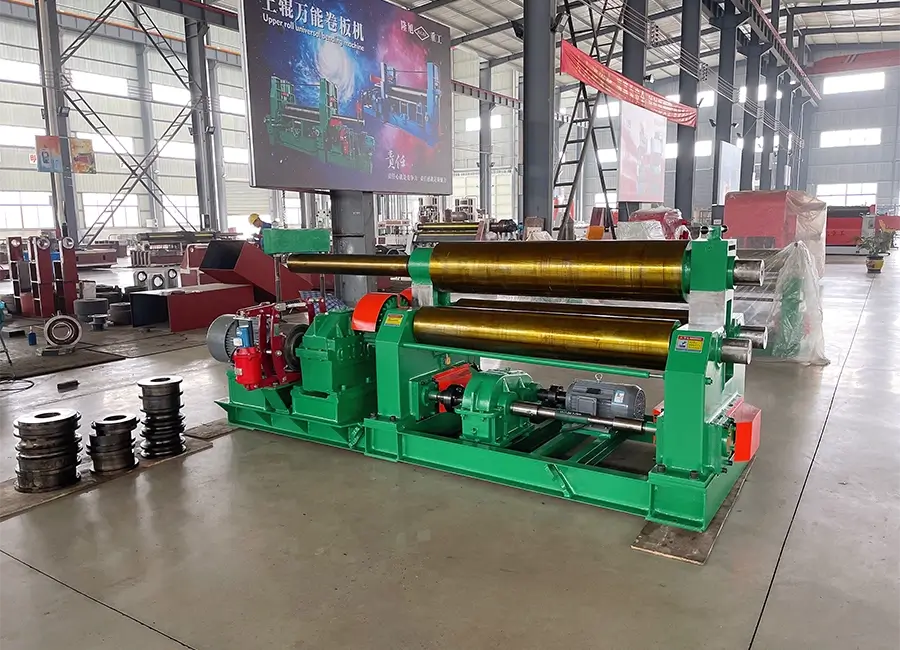

The machine adopts 3-roller symmetrical structure with the upper roller moving vertically in the center between the two lower rollers, which is achieved through the drive of the screw, the nut, the worm and he lead screw, The two lower rollers rotates, and provides the plate materials with torque through the engagement of the output gear of the moderator with the moderator with the gear of the lower rollers.
The machine adopts 3-roller symmetrical structure with the upper roller moving vertically in the center between the two lower rollers, which is achieved through the drive of the screw, the nut, the worm and he lead screw, The two lower rollers rotates, and provides the plate materials with torque through the engagement of the output gear of the moderator with the moderator with the gear of the lower rollers. The disadvantage of the machine is that the ends of the plate materials need to have the help from other equipment for pre-bending.
Product Features:
Upper and lower roll: the main component of the rolling machine, the material is forged high-quality carbon steel.
Rack: there is one left and right frame, the lower part is fixed in the seat with screws, and the middle has two racks connecting the shaft to maintain the correct position.
Gearbox: ZSY / BW / WDH standard reducer is installed on the same seat as the cushion viaduct.

Balancing device: installed on the side of the main reducer, and maintain the balance of the upper roller through the interaction between the tail axle and the pressure plate.
Chassis: by groove steel and steel plate welding, the frame, gearbox, motor, etc are Put on the chassis, and thus combined into one.
Electrical part: combined by the electrical operation box and the motor.

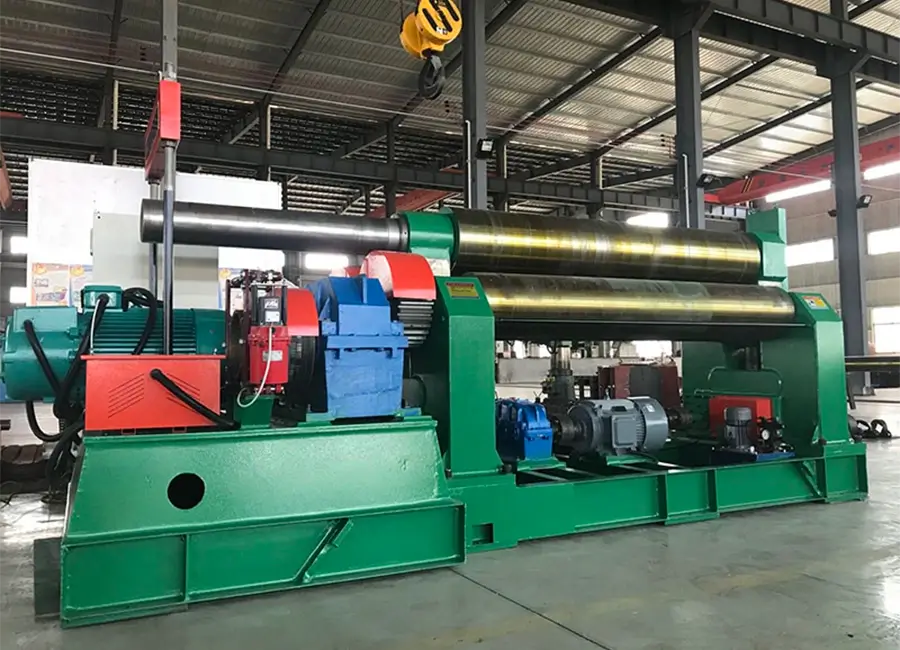

W11 Series Mechanical Symmetric Plate Rolling Machine | ||||||
Model | Max rolling thickness(mm) | Max rolling width(mm) | Yielding Limit of plate(Mpa) | Diameter of top roller(mm) | Min full loading diameter of coiled plate(mm) | Main motor power |
W11-6×1500 | 6 | 1500 | 245 | 160 | 400 | 4 |
W11-6×2000 | 6 | 2000 | 245 | 170 | 450 | 5.5 |
W11-6×2500 | 6 | 2500 | 245 | 180 | 450 | 5.5 |
W11-8×1500 | 8 | 1500 | 245 | 170 | 450 | 5.5 |
W11-8×2000 | 8 | 2000 | 245 | 180 | 450 | 5.5 |
W11-12×2000 | 12 | 2000 | 245 | 240 | 600 | 7.5 |
W11-12×2500 | 12 | 2500 | 245 | 260 | 650 | 7.5 |
W11-16×2000 | 16 | 2000 | 245 | 260 | 650 | 7.5 |
W11-16×2500 | 16 | 2500 | 245 | 280 | 700 | 11 |
W11-20×2000 | 20 | 2000 | 245 | 280 | 700 | 11 |
W11-20×2500 | 20 | 2500 | 245 | 340 | 850 | 15 |
W11-25×2000 | 25 | 2000 | 245 | 340 | 850 | 15 |
W11-25×2500 | 25 | 2500 | 245 | 370 | 950 | 22 |
W11-30×2500 | 30 | 2500 | 245 | 400 | 1000 | 30 |
W11 Series Mechanical Symmetric Plate Rolling Machine with a compact structure and convenient operation is widely used in small and medium-sized rolling plate equipment in China.
One year for the whole machine, any parts except consumables broken regarding machine quality within one year, We will send you the parts for free.
We will supply all the control systems and software operation manual, so you can operate the machine easily refer to it.
For machine problems, you can ask us any time, we will help you solve them by the online way, or tel, email, remote video for the first time.
Welcome to our factory for learning how to operate the machine, one professional engineer will together with you, this service for free.
