Four Roller Plate Rolling Machine
Fully Automatic CNC Hydraulic Four Roll Plate Bending Machine
Precision Bending for Heavy-Duty Industrial Applications
Profile bending machine is a high-efficiency equipment used to bend all kinds of profiles, such as angles, channels, I-beam, flat bars, square tubes, round tubes, pipes, and so on.
Once feeding then finish bending and pre-bending. It is widely used in petrol, chemical, shipyard, metalworking, and machine manufacturing industries.

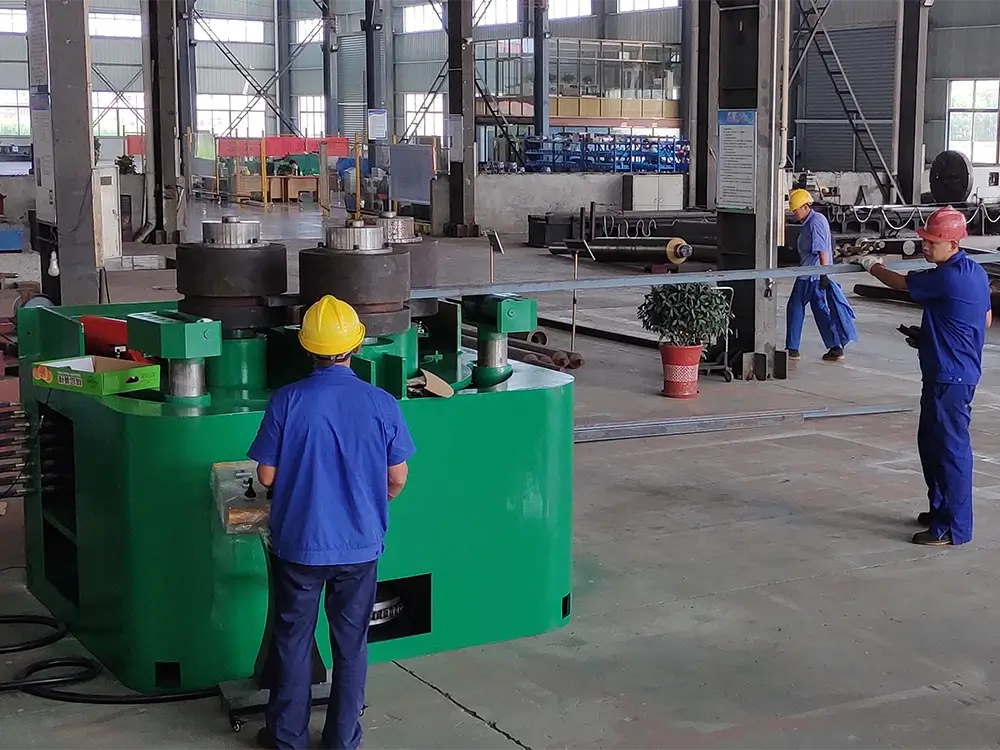

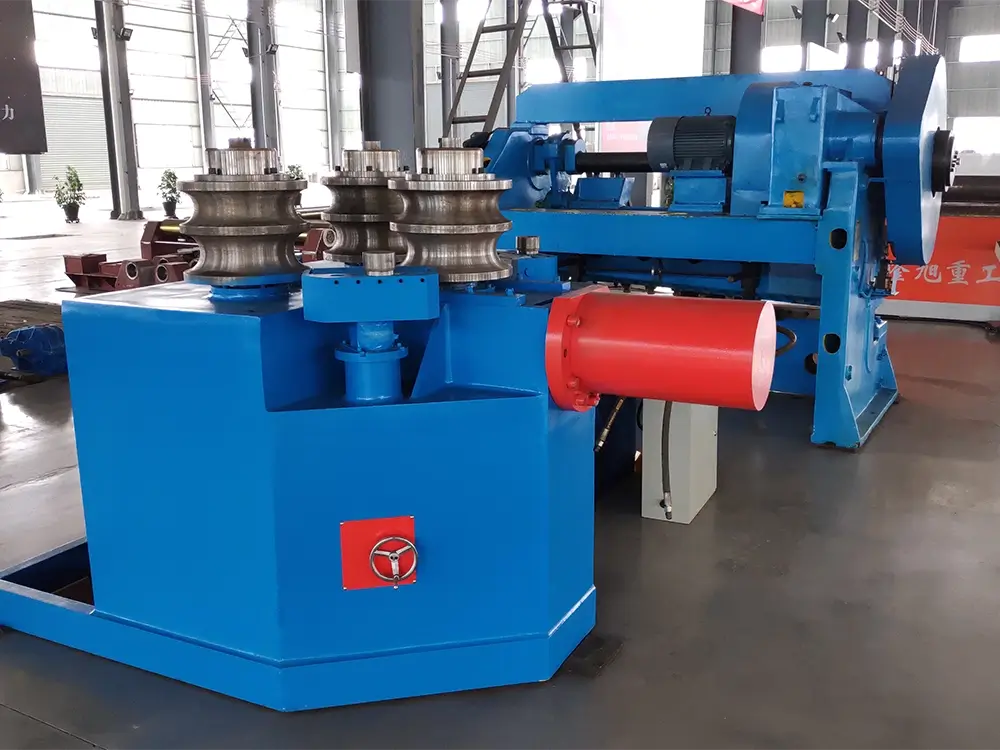

W24S-100 full hydraulic angle steel channel section bender has a machine body, side roller part, support roller part, electrical system, and hydraulic system. The machine is a whole welded structure.
Profile bending machine is a high-efficiency equipment used to bend all kinds of profiles, such as angles, channels, I-beam, flat bars, square tubes, round tubes, pipes, and so on.
Once feeding then finish bending and pre-bending. It is widely used in petrol, chemical, shipyard, metalworking, and machine manufacturing industries.
W24S-100 full hydraulic angle steel channel section bender has a machine body, side roller part, support roller part, electrical system, and hydraulic system. The machine is a whole welded structure.


Product Features:
1. The two lower rollers can elevate around the fixed axis. This machine can bend and rectify all kinds of profiles by feeding once.
2. the three rollers are driving-roller, so they can prevent skidding while bending the profile with the wall and big section.
3. It has support rollers and rotating devices, so it's convenient to bend unsymmetrical profiles.
4. It has a reasonable structure, and complete function and takes up a small area.
5. It has a digital display, convenient operation, and high efficiency.
6. It's economical and practical as this machine can bend various profiles with different sections only by changing the relative mold.
One year for the whole machine, any parts except consumables broken regarding machine quality within one year, We will send you the parts for free.
We will supply all the control systems and software operation manual, so you can operate the machine easily refer to it.
Machine problems, you can ask us any time, and we will help you solve them by online way, or tel, email, or remote video the first time.
Welcome to our factory for learning how to operate the machine, one professional engineer will together with you, this service for free.
