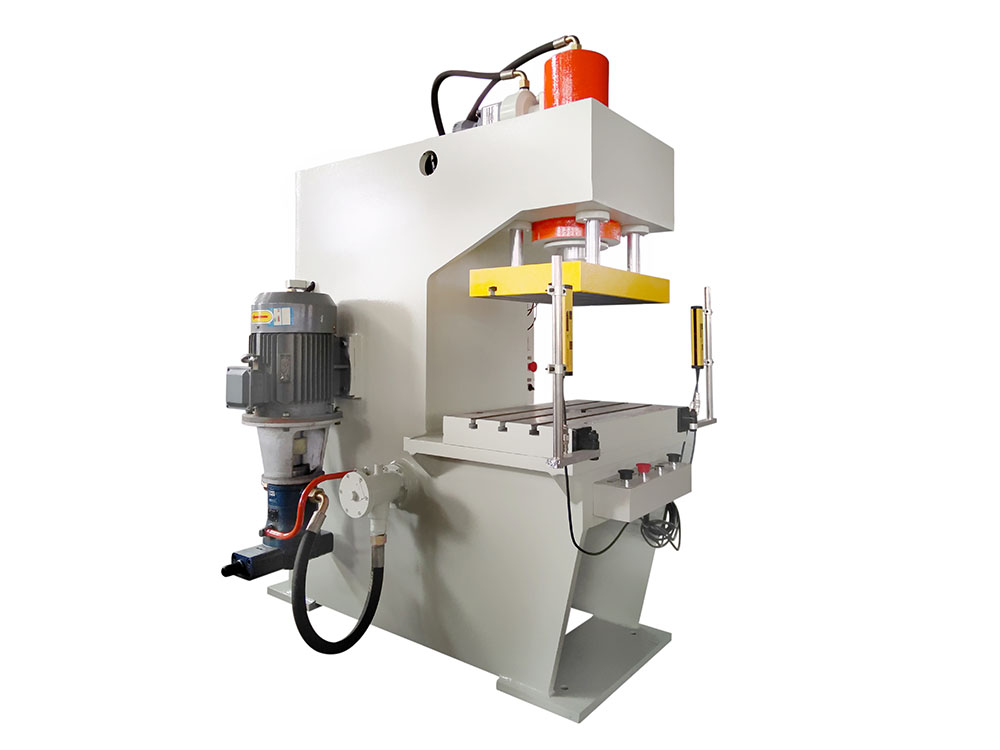

Small Servo C-Frame Single Arm Hydraulic Press

This hydraulic press machine could be used in the calibration process of shaft parts, bearings, and other similar parts and also could press-fit the shaft and sleeve parts, and this hydraulic press could be used for the simple strip shape element stretch, molding, blanking, coining, and so on processing.


Product Description

Small Servo C-frame single arm hydraulic press

This hydraulic press machine could be used in the calibration process of shaft parts, bearings, and other similar parts and also could press-fit the shaft and sleeve parts, and this hydraulic press could be used for the simple strip shape element stretch, molding, blanking, coining, and so on processing.


Product Features:

1. It is suitable for automatic operations forming, punching, bending, straightening, and multi-press assemblies to form an automatic production line.



2. Hydraulic control cartridge valve integrated system is reliable, long life, small hydraulic impact, reducing the connecting pipe with the leak.

3. Independent electrical control system, reliable, easy maintenance.



4. Fully enclosed drive, easily accessible for maintenance, exposed over hanging parts, slide and bolster tables with T-slots.



5. Protective fence and the safety interlock ensure operation safety. The movable single-hand pedal switch makes it easy to operate.



6. Working pressure can be customized from 10T to 200T according to the client's requirements.

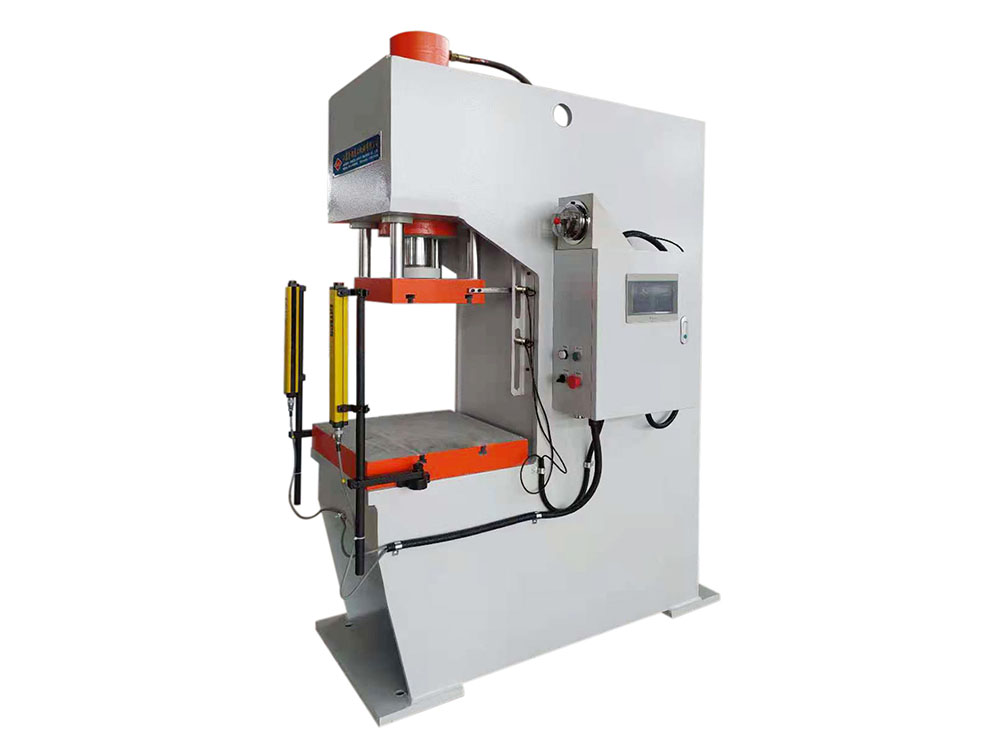

small-servo-c-frame-single-arm-hydraulic-press-section-steel-leveling-01

Technical Parameters

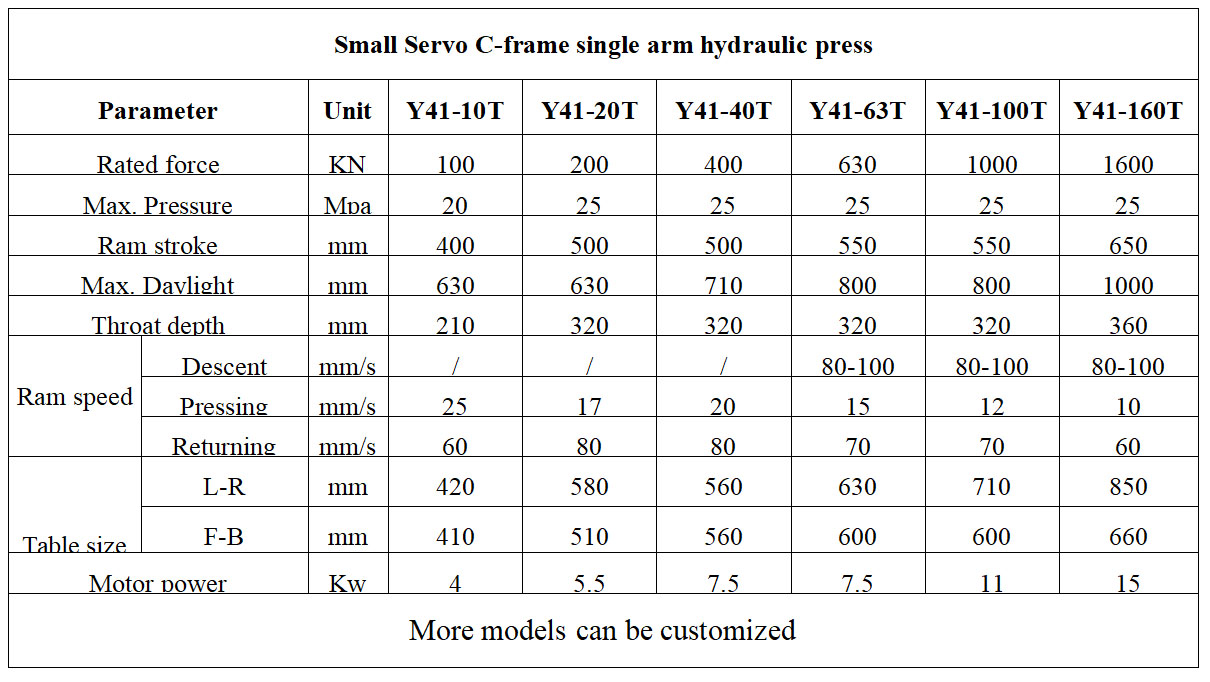

Small Servo C-Frame Single Arm Hydraulic Press Parameters

After-Sales Service

One year for the whole machine, any parts except consumables broken regarding machine quality within one year, We will send you the parts for free.

We will supply all the control systems and software operation manual, so you can operate the machine easily refer to it.


For machine problems, you can ask us any time, we will help you solve them by online way , or tel, email, or remote video for the first time.

Welcome to our factory for learning how to operate machine, one professional engineer will together with you, this service for free.
