Smart. Strong. Seamless.

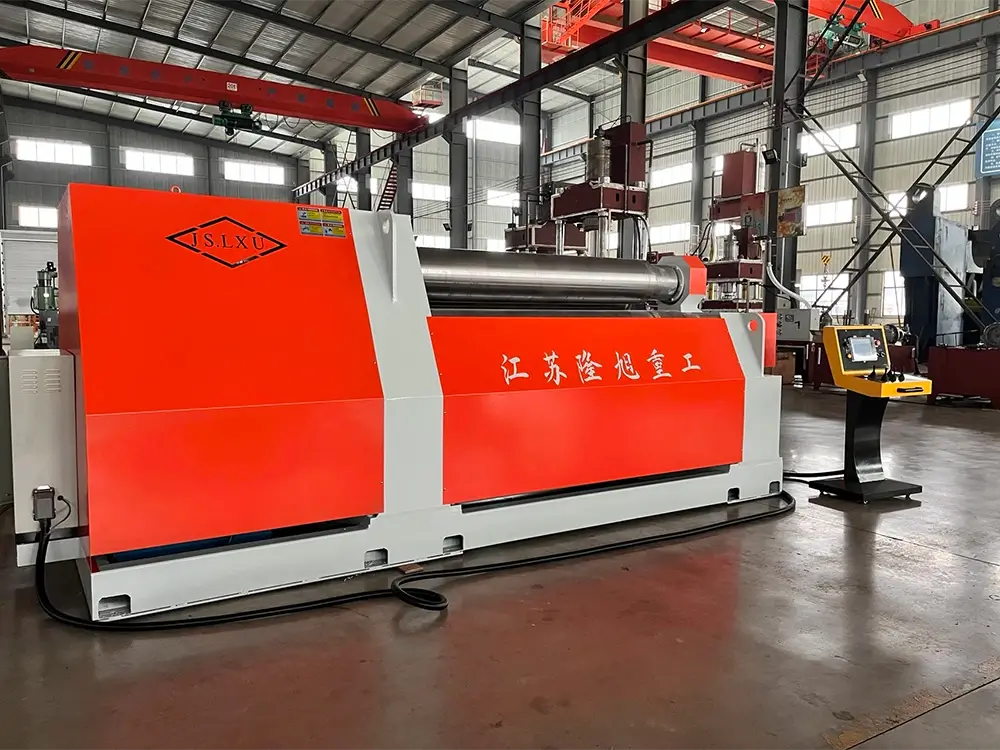

CNC Four-Roll Plate Rolling Machine Series
Designed for precision, automation, and heavy-duty performance, our four-roll plate bending machines are ideal for high-efficiency forming of mild steel, stainless steel, and alloy plates. From servo-driven compact models to full production lines, we deliver the solution that fits your fabrication needs.
Our machines are built to last, engineered for precision, and trusted by fabricators worldwide across heavy industries.
Built with high-strength steel for superior durability and stability in industrial environments.
Advanced CNC control and hydraulic synchronization ensure precise forming, even for thick plates.
Tailored machine design to meet your specific material, size, and project requirements.
Pre-rolling helps to gradually bend the material before the final rolling stage, reducing strain and ensuring uniformity. This process is essential for achieving precise curvature with minimal distortion.
The front feeding table provides stable support and accurate alignment as the material enters the rolling machine. It ensures smooth and controlled feeding, improving overall rolling precision
Side supports help secure and guide the material during the rolling process, preventing slipping or misalignment. They enhance stability, particularly when rolling large or heavy sheets.
Vertical supports provide additional stability to the material, ensuring accurate vertical alignment during rolling. They are especially important for maintaining precise curves in thicker or larger materials.
Comprehensive model specifications of our YLX32 series hydraulic press
| Fully automatic CNC hydraulic four roll plate bending machine | ||||
|---|---|---|---|---|
| Model | Max. rolling thickness | Max. pre-bending thickness | Max. rolling width | Hydraulic motor power |
| W12-4×1500 | 4 | 3 | 1500 | 4 |
| W12-6×1500 | 6 | 4 | 1500 | 5.5 |
| W12-6×2000 | 6 | 4 | 2000 | 5.5 |
| W12-6×2500 | 6 | 4 | 2500 | 5.5 |
| W12-8×1500 | 8 | 6 | 1500 | 5.5 |
| W12-8×2000 | 8 | 6 | 2000 | 7.5 |
| W12-12×1500 | 12 | 10 | 1500 | 7.5 |
| W12-12×2000 | 12 | 10 | 2000 | 11 |
| W12-12×2500 | 12 | 10 | 2500 | 11 |
| W12-16×2000 | 16 | 12 | 2000 | 11 |
| W12-16×2500 | 16 | 12 | 2500 | 15 |
| W12-20×2000 | 20 | 16 | 2000 | 15 |
| W12-20×2500 | 20 | 16 | 2500 | 18.5 |
| W12-25×2000 | 25 | 20 | 2000 | 18.5 |
| W12-25×2500 | 25 | 20 | 2500 | 22 |
| W12-30×2500 | 30 | 25 | 2500 | 30 |

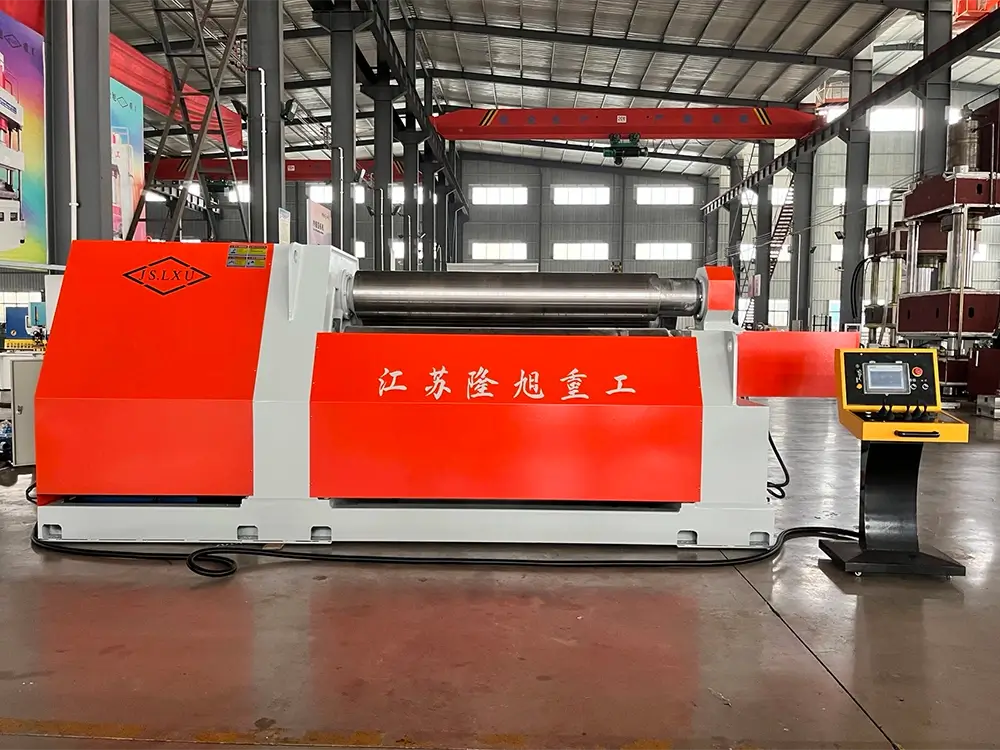

✅ True One-Pass Rolling
Rolls plates into cylinders without pre-bending or flipping the material.
✅ Full CNC/Servo Automation
Supports high-speed, repeatable batch production with precise control.
✅ Side & Central Supports
Ensure stability and precision for large or thin plates during rolling.
✅ Integrated Production Line Ready
Feeding systems, ejectors, conveyors, and robot integration available.
✅ Heavy-Duty Rolling for Thick Plates
Robust frame and hydraulic system for up to 100mm+ thick materials.
Real-world success stories that demonstrate our commitment to engineering excellence, innovation, and dedicated service across diverse industries.
Explore our comprehensive range of high-quality metal forming machinery designed to meet diverse industrial needs.
Fully Equipped Workshop Supporting Global Deliveries
We’re here to help with any questions or custom needs. Whether you're looking for product specifications, tailored solutions, our dedicated team is ready to assist.
Looking for reliable machinery solutions for your manufacturing needs? Contact us today to learn more about our Plate Rolling Machines, Hydraulic Presses, Shearing Machines, and more. We’re here to support your production goals.
